Measurement The CONTECS test lab is equipped with specialized test rigs for poly-v and timing belt analysis. Viscous and rubber damper characterization complete our standard portfolio in mechanical and thermal testing. CONTECS offers integrated material and component analysis with latest DAQ equipment to automotive OEMs and suppliers. Reliable measurement data is an indispensable fundament for MBS model parameter identification. The well-established VDA standard procedure for poly-v belts is an outstanding example only available in SIMDRIVE 3D. Performing both measurement and parameter optimization in-house are one of CONTECS core competences for best MBS simulations possible.

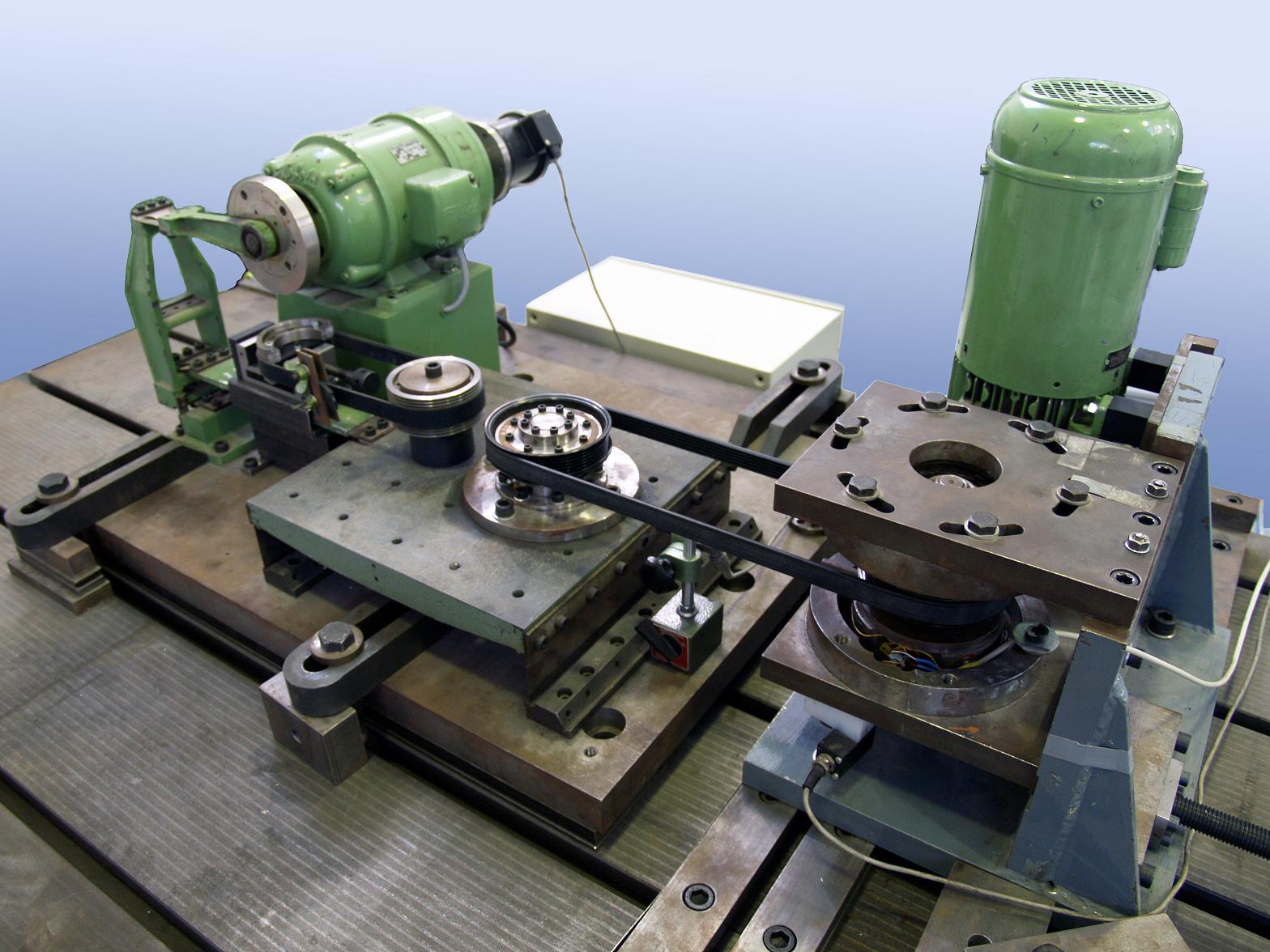

Multifunction Belt Test Rig
Used for Poly V / Timing Belts
Rotating Specimen Pulley / Damper speed (0 to 2000 rpm)
Belt Pretension (100 to 1000 N)
Oscillation Angle (max. 1 deg)
Measurement of Rotary Speed, Torque and Hubload

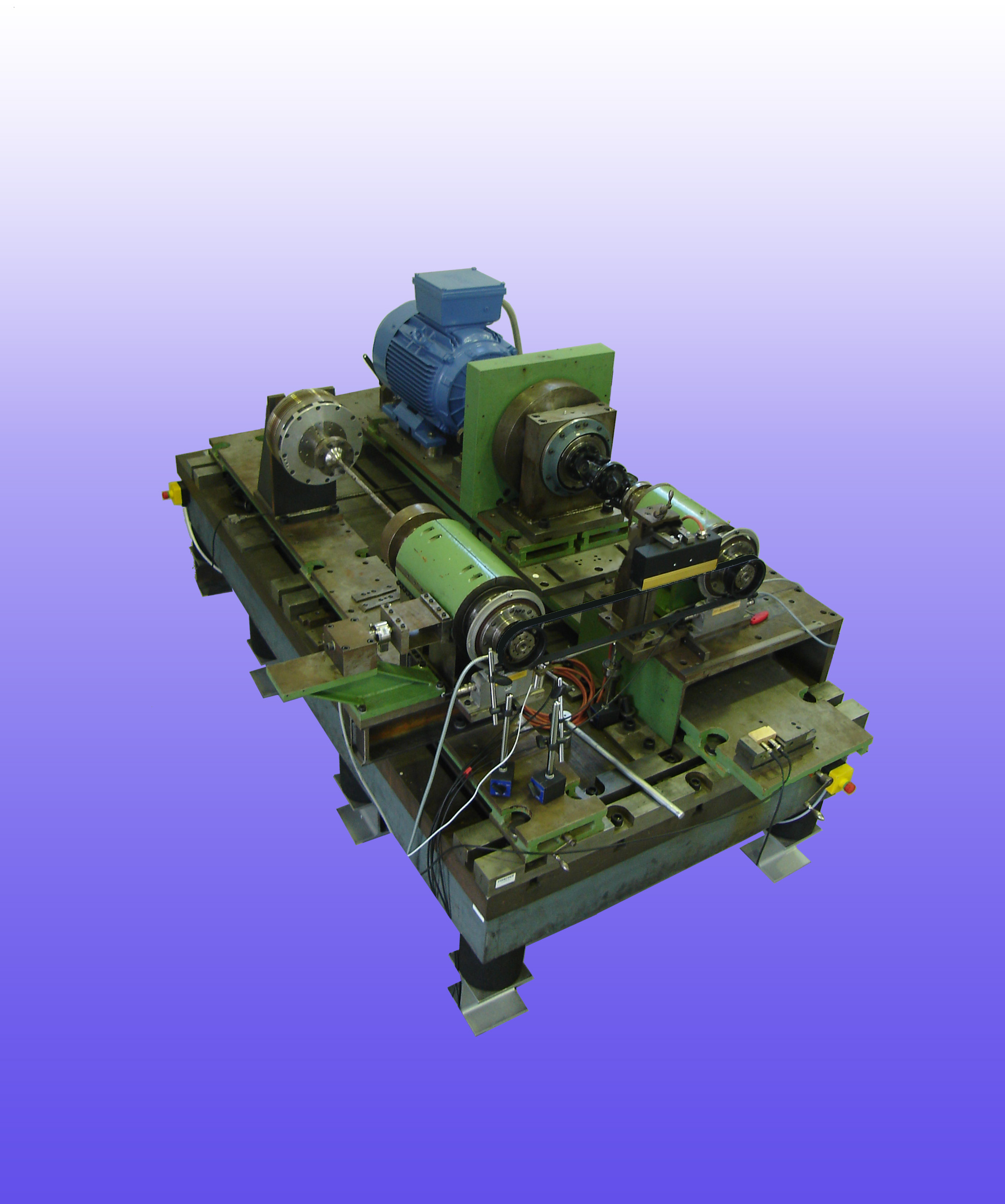

Linear Vibration Test Rig
Used for Poly V Belts and Timing Belts
Rotating Test Belt Pulley Speed: 300 to 2000 rpm
Pretension level at Belt (100 to 600 N)
Linear sinusoidal Vibration (1 to 50Hz)
Measurement of Rotary Speed, Displacement and Hubload

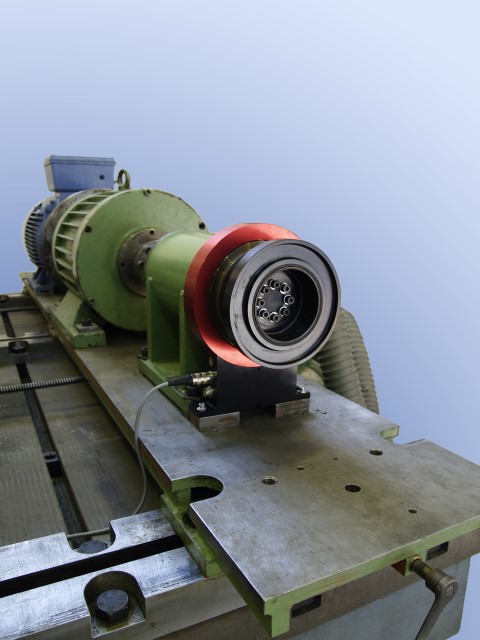

Damper Test Rig
Damper (Rubber and Viscous type) on Torsional Vibration Test rig
Asynchronous Engine for variable rotary Speed 0 to 3000 rpm
Torsional Vibration Exciter for variable amplitude: max 1° and frequency 100 to 400 Hz
Heating chamber for various temperatures above ambient temperature 20 to 120°C

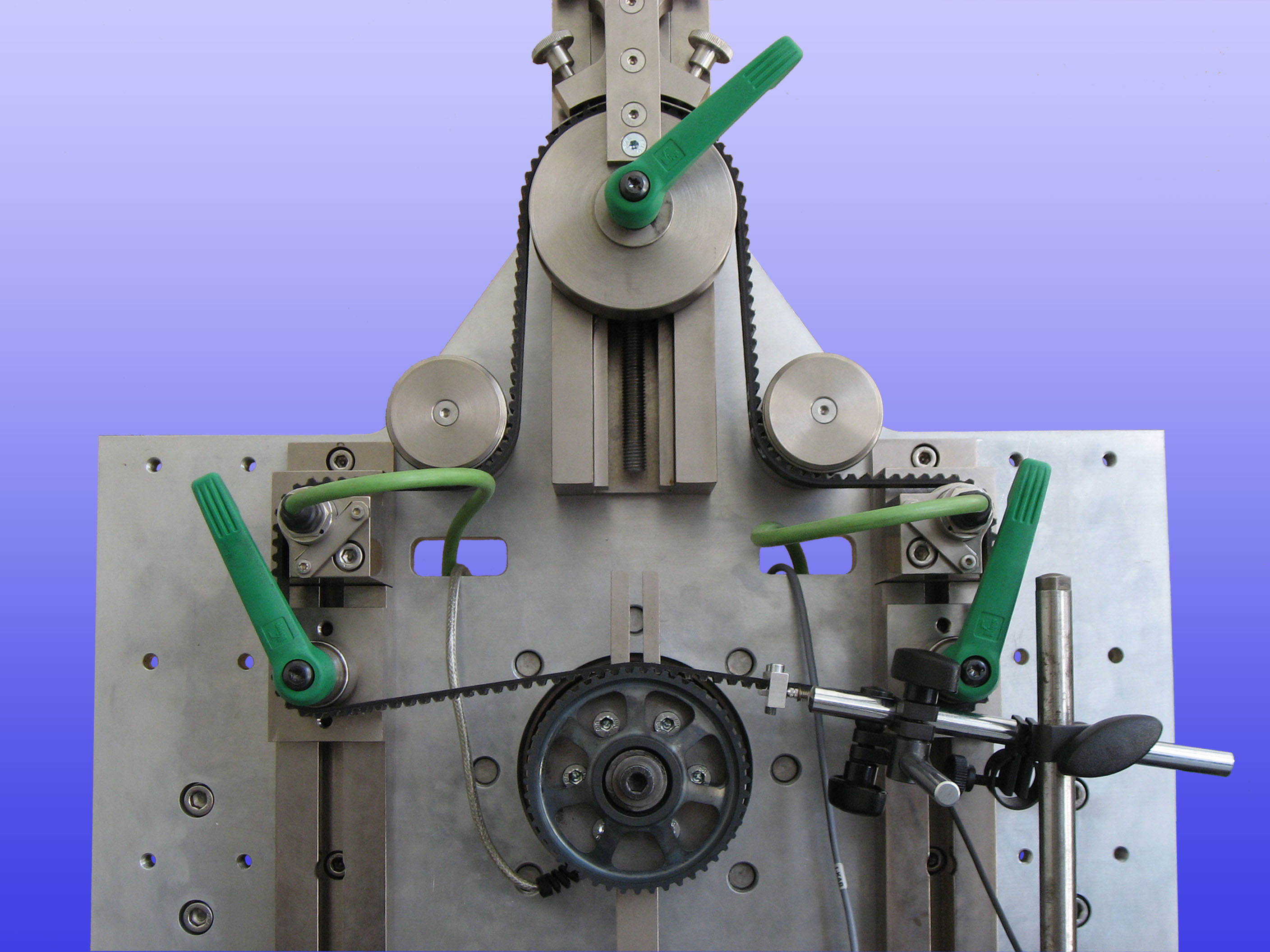

Tooth Contact Test Rig
Used for Timing Belts
Oscillating Sprocket (0 to 1 deg)
Pretension Level at Belt (100 to 1000 N)
Measurement of Oscillation Angle, Relative Displacement (Belt- Pulley), Torque and Belt Tension
